Rugged Anti-Corrosion Housing for Extreme Environments

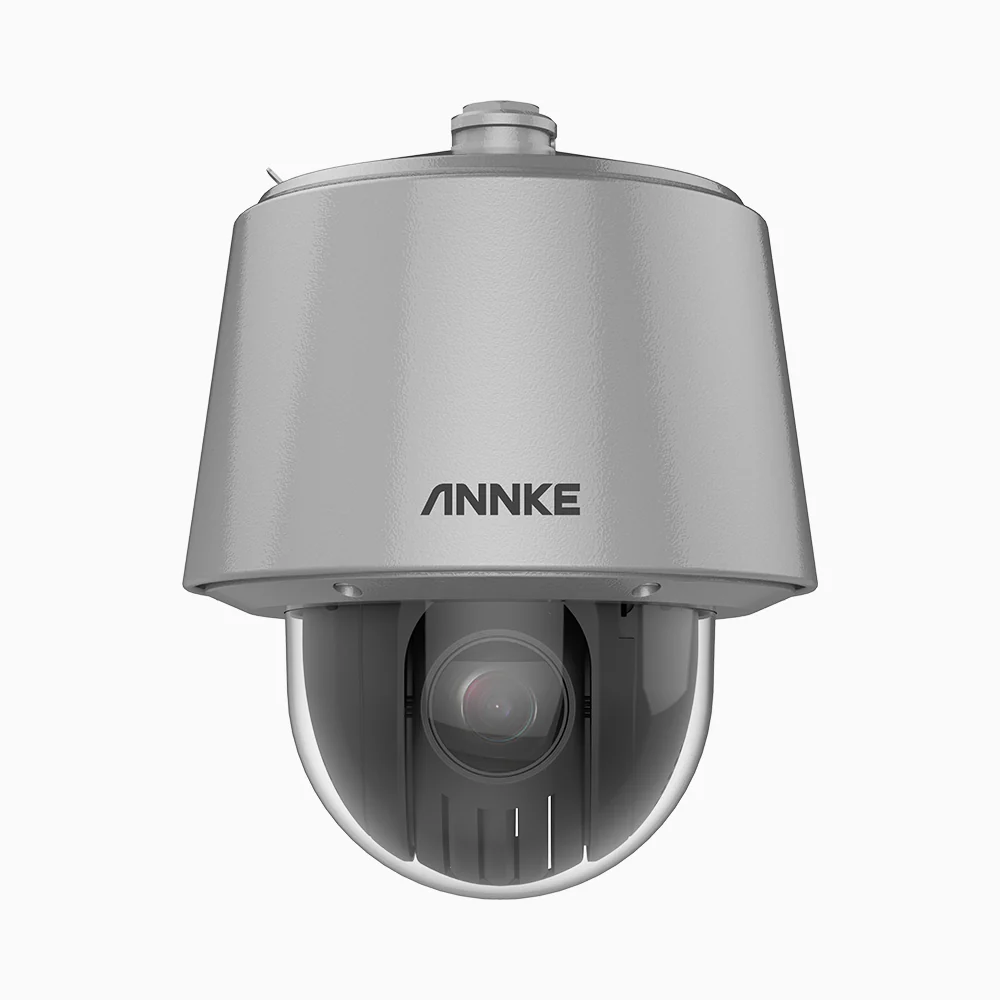

Built with industrial-grade stainless steel and coated for maximum corrosion resistance, the AZC200 is a NEMA 4X-certified PTZ dome camera engineered for tough outdoor installations. From coastal properties and marine docks to chemical plants and exposed construction zones, this camera is designed to thrive where others fail.

Rated IP67 waterproof, with IK10 vandal protection and 6KV lightning resistance, it operates flawlessly in extreme temperatures from -40°C to 70°C—making it ideal for New Zealand’s coastal and industrial conditions.

32X Optical Zoom for Precision Surveillance

The AZC200 features a powerful 5.9 mm – 188.8 mm lens with 32X optical zoom and 16X digital zoom, giving you complete control over both wide coverage and fine detail. Easily zoom in to identify faces, license plates, or activity from a distance—without losing clarity.

Whether you’re monitoring large properties, ports, or industrial sites in New Zealand, this PTZ camera ensures pin-sharp footage from near or far, in real time.

360° Pan & Tilt with Smart Patrol Scans

Monitor vast spaces effortlessly with the AZC200’s 360° horizontal pan and 90° vertical tilt, delivering seamless full-angle surveillance. Ideal for parking lots, ports, and industrial zones, this PTZ camera supports up to 8 patrol tours, each with 32 preset positions, and 4 pattern scans, recording up to 10 minutes per sequence.

Perfect for automated perimeter monitoring, this high-speed pan-tilt system ensures no blind spots—24/7 security, hands-free.

Full-Color Night Vision, Even in Near Darkness

Equipped with a 1/1.8″ progressive scan CMOS sensor, the AZC200 captures sharp 1080p Full HD footage with remarkable clarity in low-light conditions. Thanks to advanced low-light imaging, the camera provides full-colour night vision in almost complete darkness—switching to black and white only below 0.0002 Lux.

Perfect for NZ businesses, ports, and outdoor areas that need reliable 24/7 surveillance without sacrificing visibility.

Smart Auto-Tracking for People & Vehicles

Stay one step ahead with intelligent motion tracking that automatically follows people or vehicles as they move across your property. The AZC200 supports multiple tracking modes—manual control, event-based tracking, and auto-tracking—so you never miss a moment.

Ideal for Kiwi businesses, car parks, and perimeter zones, this auto-tracking security camera adds an extra layer of real-time protection with minimal effort.

Face Capture & Vehicle Detail Detection in Real Time

The AZC200 can detect and track up to 30 faces simultaneously, automatically selecting and capturing the clearest image for each subject. Its advanced AI also enables you to identify vehicle details—such as number plates, car make, and colour—even from a distance.

This makes it a powerful tool for entry points, parking facilities, and industrial zones across New Zealand, where accurate identification and tracking are essential for security and accountability.

12 Smart Detection Events for Proactive Security Alerts

Powered by advanced AI and a deep learning platform, the AZC200 supports 12 intelligent detection modes to reduce false alarms and improve situational awareness. These include intrusion detection, line crossing, loitering alerts, fast motion, object removal, unattended baggage detection, people gathering, and more.

Designed for critical infrastructure, logistics hubs, and NZ businesses, this camera delivers highly accurate, event-driven alerts to keep your property secure and your team informed—24/7.

Advanced Image Enhancements for Unmatched Clarity

Engineered for crystal-clear surveillance in any condition, this high-definition CCTV camera features five advanced image enhancement technologies: 140 dB true WDR, 3D DNR, electronic image stabilisation (EIS), defog mode, and HLC. Whether it’s harsh daylight, foggy mornings, or low-light night scenes, you’ll enjoy vibrant, detail-rich footage that leaves nothing unseen.

Ideal for coastal, industrial, and low-light environments in New Zealand, where visual clarity is non-negotiable.

H.265+ Compression for Longer Recording & Smoother Streaming

This H.265+ PoE security camera delivers ultra-efficient video compression, allowing you to store more footage without sacrificing video quality. Compared to older H.264 formats, it offers smoother live streaming, longer recordings, and significantly reduced bandwidth and storage usage.

Perfect for New Zealand homes and businesses wanting to retain detailed video history while optimising their network and storage setup.

Flexible Storage Without Monthly Cloud Fees

Take full control of your footage with this local storage security camera. Record directly to a microSD card (up to 256GB), NVR, or NAS—no cloud subscriptions or ongoing fees required. Manage and access your video recordings anytime, whether you’re monitoring from home, your office, or off-site.

Ideal for New Zealand users who value privacy, control, and long-term cost savings in their surveillance systems.

Simplified Installation with Hi-PoE or 24VAC Power Options

Install with ease using this Hi-PoE security camera, designed to stream video and receive power via a single Ethernet cable. Alternatively, connect to a 24VAC power source for flexible setup in various environments. Whether you’re covering a large property, industrial zone, or coastal facility in New Zealand, this PoE outdoor CCTV camera makes deployment quick and efficient.

Specification

Specification

Camera
Image Sensor 1/1.8” progressive scan CMOS
Min. Illumination Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
Shutter Speed 1/1s ~ 1/30,000s
Slow Shutter Yes
Focus Semi-auto,manual,auto
Day & Night ICR
Day/Night Switch Day, night, auto, scheduled-switch
BLC Yes
WDR 140 dB WDR
HLC Yes
3D DNR Yes
Defog Yes
EIS Yes. Built-in gyroscope to improve EIS performance.
Regional Exposure  yes Yes
Regional Focus  yes Yes
White Balance Auto,ATW,sodium lamp,fluorescent lamp,indoor,outdoor,MWB,Locked WB
Digital Zoom 16 ×
Optical Zoom 32 ×
Privacy Mask Up to 24 masks,polygon region ,mosaic mask ,mask color configurable
DORI Detect(25px/m): 2604.1 m
Observe(63px/m): 1033.4 m
Recognize(125px/m): 520.8 m
Identify(250px/m): 260.4 m
SNR ≥52dB
General Function Mirror, password protection, watermark, IP address filter
Selection Parameter
Specific Protection Anti-Corrosion
Lens
Focal Length 5.9 mm to 188.8 mm, 32 × Optical
Zoom Speed Approx. 4.5 s
FOV Horizontal field of view: 59.8° to 3.3° (wide-tele),
Vertical field of view: 33.7° to 1.9° (wide-tele),
Diagonal field of view: 65° to 3.8° (wide-tele)
Aperture F1.5
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed  pan speed: Configurable from 0.1° to 300°/s; preset speed: 540°/s
Tilt Speed  tilt speed: Configurable from 0.1° to 240°/s, preset speed 400°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Video
Max. Resolution 1920 × 1080
Main Stream 50Hz:25fps(1920×1080,1280×960,1280×720)
60Hz:30fps(1920×1080,1280×960,1280×720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression H.265,H.264,MJPEG
Video Bit Rate 32 Kbps ~ 16384 Kbps
H.264 Type Baseline profile,main profile,high profile
H.265 Type Main profile
H.264+ Yes
H.265+ Yes
SVC Yes
ROI Fixed region
Audio
Audio Compression G.711alaw,G.711ulaw,G.722.1,G.726,MP2L2,PCM
Audio Bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
Smart Features
Face Capture Support detecting up to 30 faces at the same time. Support detecting, tracking,capturing, grading, selecting of face in motion, and output the best face picture of the face.
Road Traffic Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
Basic Event motion detection,video tampering alarm,alarm input and output,exception
Smart Event Intrusion detection,line crossing detection,region entrance detection,region exiting detection,loitering detection,people gathering detection,fast moving detection,parking detection,unattended baggage detection,object removal detection,vandal-proof alarm,audio exception detection
Smart Tracking Manual tracking,event tracking,auto-tracking
Smart Record ANR,Dual-VCA
Alarm Linkage Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record,Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Network
Network Storage NAS (NFS, SMB/ CIFS),ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
API Open-ended API, ISAPI,Hikvision SDK,Third-party management platform,Ehome,ISUP,ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Smooth Streaming yes
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200,Hik-Connect,Hikcentral
Web Browser IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
Supplement Detection
Compass Yes
Interface
Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB;NAS (NFS, SMB/CIFS), ANR
Alarm Input 7 alarm inputs
Alarm Output 2 alarm outputs
Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output 1 audio output, line level, impedance: 600 Ω
Video Output 1.0V[p-p]/75Ω,PAL,NTSC,BNC connector
RS-485 IPCAM, Pelco-P, Pelco-D, self-adaptive
General
Power 24 VAC, max. 45 W (including max. 5 W for heater), Hi-PoE
Material SUS316L stainless steel
Operating Conditions Temperature:-40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Web Client Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Protection Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5,IP67 Standard,IK10
General
Anti-Corrosion NEMA 4X
