| Camera Appearance | Turret |
|---|---|
| HDD Capacity | 4 TB, 8 TB, 10 TB, 12 TB, 16 TB, 20 TB, NO HDD |
| Camera Quantity | 48 Cam |
| NVR Channel | 64CH NVR |
| Resolution | 4K |
| Technology Type | Two-Way Audio |
-20%Hot

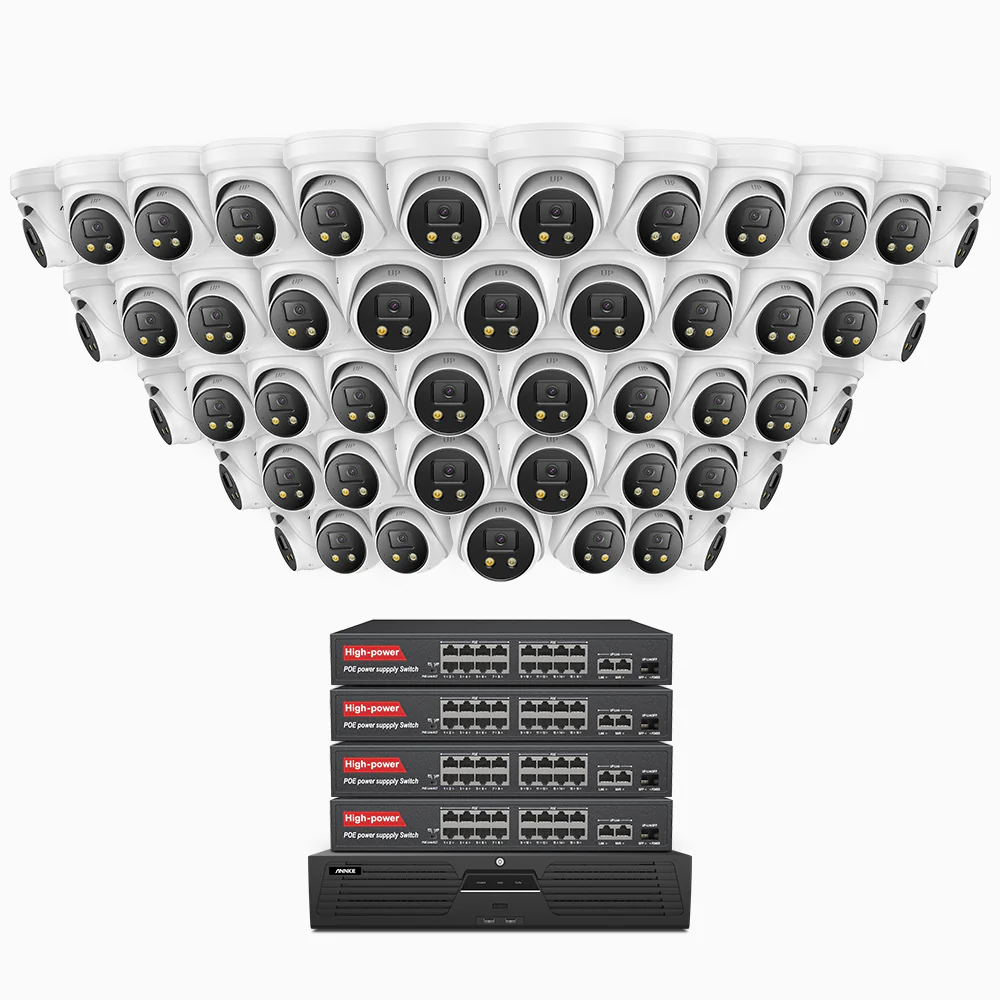

AH800- 4K 64-Channel PoE Security System with 48 High-Performance Cameras – Advanced AI Detection & Perimeter Protection
Price range: $15,959.22 through $17,607.42
Available on backorder
Additional information
Description
Description
AI Tech, Active Alarm, Alexa
Making the Ace-High 4K Camera System
Crystal-Clear 4K Ultra HD Surveillance with Wide-Angle Precision
Experience next-generation clarity with the AH800 64-channel 4K security system. Each camera is equipped with a powerful 1/1.8” BSI sensor and an ultra-wide 134° field of view, delivering real-time 3840×2160 resolution at 25 fps. The precision-engineered f/1.6 aperture captures more light, ensuring crisp detail in low-light and high-contrast environments—perfect for large properties and critical surveillance coverage.
Smart Face Capture & Precise Vehicle Detection
Upgrade your home security with intelligent face and vehicle detection. The AH800 uses advanced AI to accurately identify people and vehicles—eliminating false alarms caused by pets, weather, or shadows. When someone approaches your property, the system captures their face and sends a real-time alert, giving you vital information without invading privacy. Whether it’s a courier or a potential intruder, you’ll always know what’s happening around your home or business.
Active Deterrence with Motion-Activated Strobe & Spotlight Alarms
Defend your home or business before intrusions happen. The AH800 4K PoE security cameras use advanced AI and deep-learning algorithms to detect humans, vehicles, and other moving objects with precision. Once a threat is identified, the built-in spotlight and strobe light activate instantly—scaring off intruders before they get too close. With real-time deterrence and motion-activated security, this system adds a powerful layer of protection to any property.
Advanced Smart Motion Detection with Behaviour Analysis
The AH800 PoE camera features next-gen smart motion detection powered by 7 distinct behavioural analytics. Backed by a cutting-edge perimeter protection algorithm, it intelligently recognizes human actions—like loitering, line-crossing, or intrusion—and instantly sends accurate alerts. This proactive monitoring helps reduce false alarms and ensures faster response to real security threats around your home or business.
Full-Colour Night Vision with Enhanced EXIR 3.0 Technology
Experience crystal-clear colour footage, even in near-total darkness. Equipped with a premium f/1.6 aperture and advanced sensor, this night vision security camera captures full-colour video in ultra-low light—down to just 0.003 Lux. Powered by upgraded EXIR 3.0 infrared technology, the system provides up to 100 ft night vision range, minimises IR glare, and actively repels insects from the lens. Plus, its efficient heat dissipation extends the camera’s lifespan—ideal for long-term outdoor surveillance in New Zealand’s changing climates.
Clear Two-Way Audio with Noise Cancellation
Stay connected and in control with real-time two-way audio. The built-in noise-cancelling microphone filters out background sounds, allowing you to hear voices clearly from up to 20 feet away. Whether you’re using it to talk to visitors, deter intruders, or monitor activity, this advanced PoE security system with audio delivers crisp communication for smarter surveillance.
Built to Withstand New Zealand’s Harshest Conditions
Engineered for durability, this IP67 weatherproof security camera is made to perform in extreme environments—from freezing -30 °C winters to scorching 60 °C heat. Whether it’s rain, snow, or high humidity, it keeps recording in 4K ultra HD, even when submerged in water up to 1 metre. Constructed with aircraft-grade aluminium, the housing resists corrosion and heavy impacts, making it the ideal outdoor surveillance camera for New Zealand homes, farms, and businesses.
Metal
Rugged Housing
140 °F | 60 °C
Hot Rating
-22 °F | -30 °C
Cold Rating
IP67
Water Rating
Small on Prices, Big on Features
Works with Alexa
Get fast & easy access to the camera with Alexa hands-free voice control. Give your voice commands to access the live stream directly.
Advanced H.265+ coding
H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budget on buying more HDDs.
PoE or DC Power
Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for the power supply.
Unlimited Remote Access
Easily access your system via the intuitive ANNKE Vision App from virtually anywhere in the world.
Customized Motion Areas
Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.
Support RTSP
Integrate the camera to third-party software, like Blue Iris, Synology, etc.
FAQs
What is included in the AH800 64-channel 4K PoE security system with 48 cameras?
This system includes a 64-channel NVR and 48 high-performance 4K PoE cameras for large-scale surveillance. It also comes with essential cables and accessories for installation. It’s designed for commercial, industrial, and large residential properties.
Is this security system suitable for large businesses and industrial sites?
Yes, the 64-channel capacity and 48 cameras make it ideal for warehouses, factories, malls, and large facilities. It provides extensive coverage with minimal blind spots. It’s built for high-demand, large-scale security environments.
How clear is the video quality in this 4K surveillance system?
Each camera delivers true 4K Ultra HD resolution, offering sharp and highly detailed footage. You can easily identify faces, vehicles, and critical activities. It ensures precise monitoring and reliable evidence collection.
Does the system perform well in low-light or night conditions?
Yes, it features a 1/1.8'' BSI sensor, F/1.6 aperture, and 0.003 Lux sensitivity. This allows the cameras to capture clear, color-rich images even in near darkness. It ensures reliable 24/7 surveillance in all lighting conditions.
How does AI human and vehicle detection reduce false alarms?
The system uses advanced AI to distinguish between humans, vehicles, and irrelevant motion like animals or environmental changes. This reduces false alerts and improves accuracy. You’ll only be notified about real security threats.
What perimeter protection features are included in this system?
Perimeter protection allows you to set virtual boundaries and restricted zones. The system sends instant alerts when someone crosses these areas. This helps prevent unauthorized access and enhances overall security control.
Does this system include active deterrence features?
Yes, it includes a built-in siren and strobe light that activate during suspicious activity. These features help scare off intruders before they can enter your property. It adds a proactive layer of protection.
Can I communicate through the cameras using two-way audio?
Yes, the system includes built-in microphones and speakers for two-way audio communication. You can talk to visitors or warn intruders remotely. This is especially useful for entry points and access control.
Is the PoE system easy to install despite its large scale?
Yes, the PoE (Power over Ethernet) design simplifies installation by using a single cable for power and data. This reduces wiring complexity even for large setups. It ensures a stable and efficient connection.
Can I control and monitor this system using Alexa or remotely?
Yes, the system is compatible with Amazon Alexa for voice control and supports remote access via apps and web platforms. You can view live footage, receive alerts, and manage settings from anywhere. This ensures full control and convenience.
Specification
Specification
I91BD Camera
| Image Sensor1/1.8″ Progressive Scan CMOS | Video CompressionH.265+/H.265/H.264+/H.264 |
| Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Bitrate32 Kbps ～ 16 Mbps | Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Input/Output1X Built-in Microphone; 1X built-in Speaker | Environment Noise FilteringYes |
| Lens2.8 mm | Min. Illumination0.003 Lux@(F2.0, AGC On) |
| Angle of ViewHorizontal FOV: 110°, Vertical FOV: 57°, Diagonal FOV: 134° | Number of Infrared LEDs2 pcs |
| Night Vision DistanceUp to 100 ft/30 m | DNR3D DNR |
| Wide Dynamic Range120 dB WDR | Network StorageLocal Storage & NAS (NFS, SMB/CIFS) |
| ONVIFSupport | Day/Night SwitchDay, Night, Auto, Schedule |
| EthernetRJ45 X1 (10 M/100 M) |
I91BD General
| HousingPlastic & Metal | ColorWhite |
| Operating PowerPoE (802.3af), 12 V DC ± 25% | StorageBuilt-in MicroSD/SDHC/SDXC Slot, up to 256 GB |
| Hardware ResetYes | Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C |
| Indoor/OutdoorIndoor/Outdoor | Weatherproof RatingIP67 |
| Dimension (L X W X H)72.9 mm X 73.3 mm X 191.1 mm (2.9″ X 2.9″ X 7.5″) | WeightApprox. 595 g (1.3 lbs.) |
I91BL Camera
| Image Sensor1/1.8″ Progressive Scan CMOS | Video CompressionH.265+/H.265/H.264+/H.264 |
| Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Bitrate32 Kbps ～ 16 Mbps | Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Input/Output1X Built-in Microphone; 1X Built-in Speaker | Environment Noise FilteringYes |
| Lens2.8 mm | Min. Illumination0.003 Lux@(F2.0, AGC On) |
| Angle of ViewHorizontal FOV: 111°; Vertical FOV: 59°; Diagonal FOV; 134° | Number of Infrared LEDs2 pcs |
| Night Vision DistanceUp to 100 ft/30 m | DNR3D DNR |
| Wide Dynamic Range120 dB WDR | Network StorageLocal Storage & NAS (NFS, SMB/CIFS) |
| ONVIFSupport) | EthernetRJ45 X1 (10 M/100 M) |
I91BL General
| HousingPlastic & Metal | Operating PowerPoE (802.3af), 12 V DC ± 25% |
| StorageBuilt-in MicroSD/SDHC/SDXC Slot, up to 256 GB | Hardware ResetYes |
| Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C | Indoor/OutdoorIndoor/Outdoor |
| Weatherproof RatingIP67 | Hardware ResetYes |
| Dimension (L X W X H)Ø 138.3 mm X 124.5 mm (Ø 5.4″ X 4.9″) | WeightApprox. 840 g (1.9 lbs.) |
