Additional information
Camera Appearance

Turret

Color

Black, White

HDD Capacity

1 TB, 2 TB, 3 TB, 4 TB, 6 TB, NO HDD

Camera Quantity

6 Cam

Night Vision

Color & IR Night Vision

NVR Channel

8CH NVR

Resolution

3K

Technology Type

Built-in Microphone

Description

Description

Flexible Switching between Color
and IR to Active Deterrence

Capture Crisp Night Footage with Smart Dual Light Technology

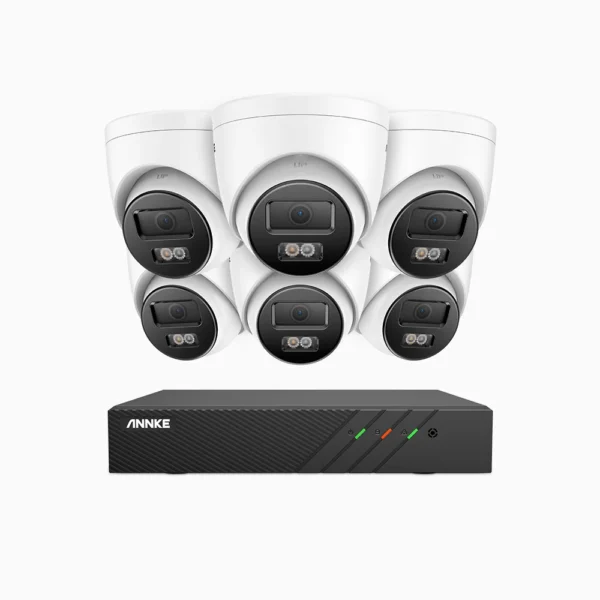

Experience round-the-clock protection with the AH500 3K 8 Channel 6 Camera PoE Security System. Equipped with smart dual light night vision, each camera automatically switches from infrared to white light when motion is detected—ensuring crystal-clear, full-colour footage even in total darkness.

Choose between infrared, white light, or intelligent dual-light mode based on your surveillance needs. With up to 30 metres of IR range and 20 metres of white light distance, this outdoor security camera system is perfect for New Zealand homes, farms, and small businesses needing reliable visibility day and night.

Stunning 3K Ultra HD Video with Wide 16:9 Viewing

Capture every detail with exceptional clarity using advanced 3K resolution (3072×1728@20fps) powered by a 1/3″ Progressive Scan BSI CMOS sensor. Whether it’s day or night, this high-performance security camera system records true-to-life footage ideal for property surveillance in New Zealand.

The 16:9 aspect ratio delivers a wider, more immersive field of view—perfect for modern screens and monitoring multiple zones in driveways, backyards, or commercial premises.

Accurate Human & Vehicle Detection with Smart Alerts

Stay informed with smarter motion detection. The AH500 security system features advanced AI-based human and vehicle detection that identifies real threats with up to 99% accuracy. Unlike traditional motion sensors, it filters out false alerts caused by animals, trees, or shadows—ensuring only important activity triggers real-time notifications.

This intelligent surveillance system is ideal for home security or business monitoring across New Zealand, helping you respond faster and protect your property with confidence.

Efficient H.265+ Video Compression Saves Bandwidth & Storage

Get more out of your security system with advanced H.265+/H.265 video compression technology. This cutting-edge format delivers crisp, high-resolution footage while using up to 50% less storage space compared to traditional H.264 systems—without sacrificing image quality.

Whether you’re securing your home or business in New Zealand, this technology helps lower bandwidth usage and maximises your hard drive capacity, making 24/7 recording both reliable and cost-effective.

Crystal-Clear 3K Clarity with Advanced Image Enhancement

Experience unmatched image quality with four professional-grade video enhancement technologies. The AH500 PoE security cameras feature 120 dB True WDR, 3D DNR, BLC, and HLC, ensuring crystal-clear 3K Super HD video—day or night.

Whether you’re monitoring your driveway in broad daylight or watching over your property under moonlight, this system delivers vivid detail, balanced lighting, and sharp contrast—making it a powerful choice for reliable video surveillance in New Zealand’s variable lighting conditions.

Built for Harsh New Zealand Weather – IP67 Weatherproof Rated

Engineered for outdoor durability, the AH500 security camera system features IP67 weatherproof protection, making it fully resistant to dust, heavy rain, and even submersion in water up to 1 metre for 30 minutes.

With a wide operating temperature range down to -30°C, these outdoor security cameras are designed to perform in New Zealand’s unpredictable conditions—from icy mornings in Otago to stormy nights in Auckland. No matter the climate, your property surveillance remains uninterrupted and dependable.

Metal & Plastic

Rugged Housing

-22 °F | -30 °C

Cold Rating

140 °F | 60 °C

Heat Rating

IP67

Water Rating

Small on Prices, Big on Features
Support Local
Storage
Record videos onto your micro SD/SDHC/SDXC card slot, up to 256 GB.
PoE & DC 12V
Power Supply
Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for the power supply.
Built-in
Microphone
Support filter the environment noise, and record videos with vivid sound.
Remote Access
& Control
Stay tuned with your home or business all the time by ANNKE Vision APP or Client.
Specification

Specification

 Download AC500 Specification

 Download N48PBB V2 Specification

What’s in the Box
  • 12 X Cameras
  • 1 X Ethernet Cable
  • 1 X Mounting Screws Bag
  • 1 X User manual
Camera
Image Sensor1/3″ Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
Video Bitrate32 Kbps – 6 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio InputBuilt-in Microphone, record with audio Lens2.8 mm
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Supplement Light TypeSmart Dual-Light, IR, White Light
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°/td>
Supplement Light RangeIR: up to 30 m, wite Light: up to 20 m Motion detection 2.0Supoort, include Human & Vehicle detection
Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version 18.12
Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
General FunctionMirror,rotate,password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
General
HousingMetal & Plastic ColorWhite & Black
StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C Indoor/Outdoor UseIndoor/Outdoor
Interface ProtectionIP67 Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″)
Weight0.6 lb./270 g
